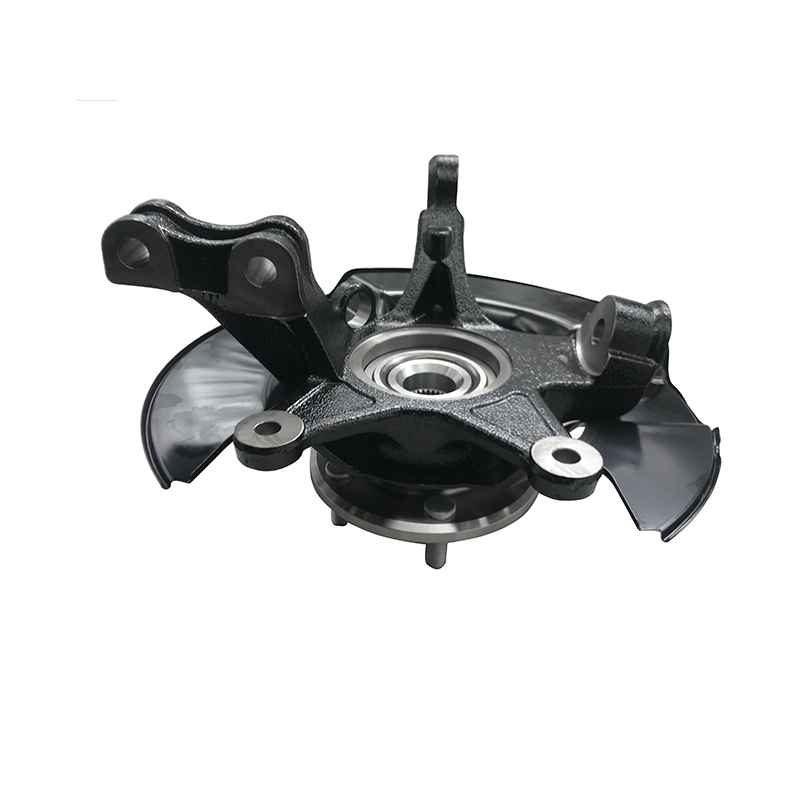

0107SKU37-A2 HWH Front Right Loaded knuckles698-492: Honda Pilot 2005-2008

HWH No.: 0107SKU37-A2
Reference  Number: 698-492
Steering Knuckle OE: 51211S3VA01
Backing Plate OE.:: 45255S9VA00
Wheel Hub OE: 44600S3VA10

Products Details

Product Details

Anti Lock Braking System Yes
Anti Lock Braking System Type: Sensor
Bolt Circle Diameter 4.5 in./114.3mm
Brake Pilot Diameter 2.52in./64mm
Flange Bolt Hole Diameter 3.93in./100mm
Flange Bolt Hole Quantity 5
Flange Bolts Included: Yes
Flange Diameter: 6 in. / 152.4 mm
Flange included: Yes
Flange Shape: Circular
Hub Pilot Diameter: 2.01 in. / 51 mm
Item Grade: Standard
Material: Steel
Spline Quantity: 30
Wheel Stud Quantity: 5
Wheel Stud Size: M12*1.5
Wheel Studs Included: Yes
Knuckle 51211S3VA01
Backing Plate 45255S9VA00
Wheel Hub 44600S3VA10

Packing Details

Package Contents: 1Knuckle;1Bearing;1Hub;1Backing Plate;1Axle Nut
Package Quantity: 1
Packaging Type: Box
Selling Package Quantity UOM Piece

Direct OE Numbers
